Onderwerp: Polar performance, speed plugin voor SignalK maken

Polar performance, speed plugin voor SignalK maken 27 mei 2023 14:14 #1482338

Baasklusje Offline Gebruiker Berichten: 29079	Nachtvlinder schreef : Ter aanvulling: ook onder zeil bij behoorlijk constante SOG fluctueert de performance meer dan in het echt. Kan je SPD erbij gebruiken? Kijken naar het verschil?
	"You means de Womens' Libromatium Movenint done created de uncontrollable urgement to play dingle-dangle-dingle wit de personal requipment of yo own gender?" Zappa, Thing Fish Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 27 mei 2023 18:13 #1482371

3Noreen
Offline
Gebruiker
Berichten: 17809

Baasklusje schreef :

3Noreen schreef :

Nu lijkt tijdens de oekraine oorlog meer drift in het gps signaal te zitten. Mijn ankerwacht gaat alle kanten op.

Lig je al 16 maanden voor anker?

Ik wandel momenteel op GPStracks en heb 3 meter nauwkeurigheid .

Ja inderdaad al jaren voor anker. Staat ook op de gevel van mijn huis.

Maar om een of andere reden wandelt mijn huis af en toe. Kan zo'n 12-14 meter zijn.
Nix bijzonders als je kunt verdragen dat meetinstrumenten een onnauwkeurigheid hebben. Zoals in de echte wereld. Maar idealisten vind je overal. Voor hun is elke meting 100% nauwkeurig.

Fake it till you make it

Laatst bewerkt: 27 mei 2023 18:22 door 3Noreen.

Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 30 mei 2023 22:30 #1483243

hanst Offline Gebruiker Berichten: 439	Nachtvlinder schreef : Ter aanvulling: ook onder zeil bij behoorlijk constante SOG fluctueert de performance meer dan in het echt. Klok linksonder, linksondetste getal is SOG. Alle filters op 2 s hier. Ik denk dat er toch iets mis gaat in de filtering; hoe gedraagt die zich als de sampletijd significant zou variëren? Zoals besproken via email moet dit nu opgelost zijn.
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 31 mei 2023 08:56 #1483283

hanst Offline Gebruiker Berichten: 439	Polar ook als Webapp zichtbaar op de Zeus/Vulcan via de SignalK MFD plugin
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 01 juli 2026 10:17 #1691215

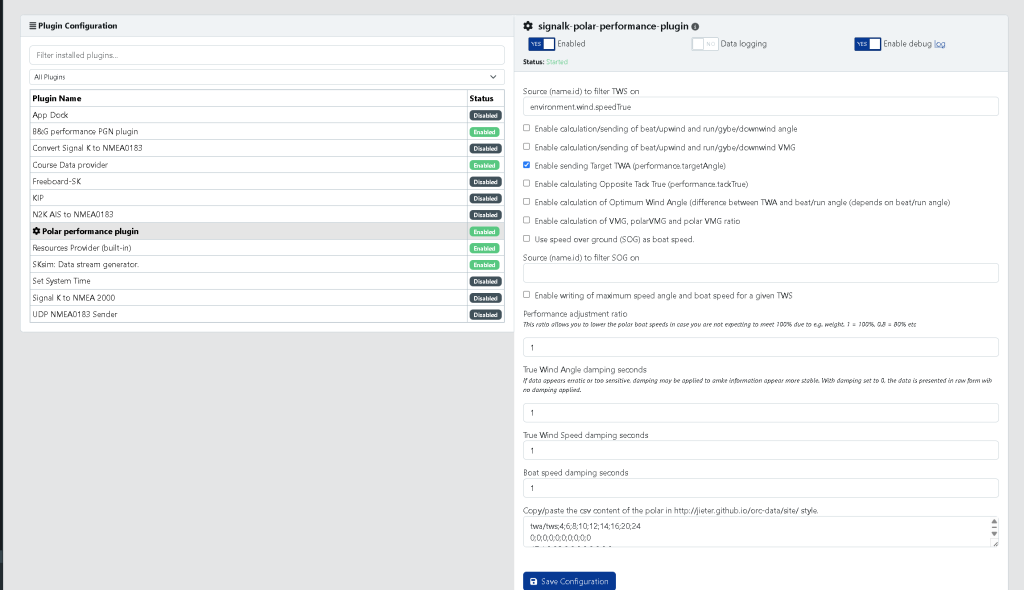

amauryv Offline Gebruiker Berichten: 12	Hi Ik probeer de plugin te testen op signal k met de SK sim plugin. Welke data heeft ie juist allemaal nodig om de percentage van de polar te berekenen? krijg momenteel niks door zo te zien. Heb in de config al de csv toegevoegd. Groeten Amaury Bijlagen: ...t_1.png (32KB)
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 01 juli 2026 10:33 #1691219

hanst Offline Gebruiker Berichten: 439	Wat laat de webapp zien?
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 01 juli 2026 19:11 #1691286

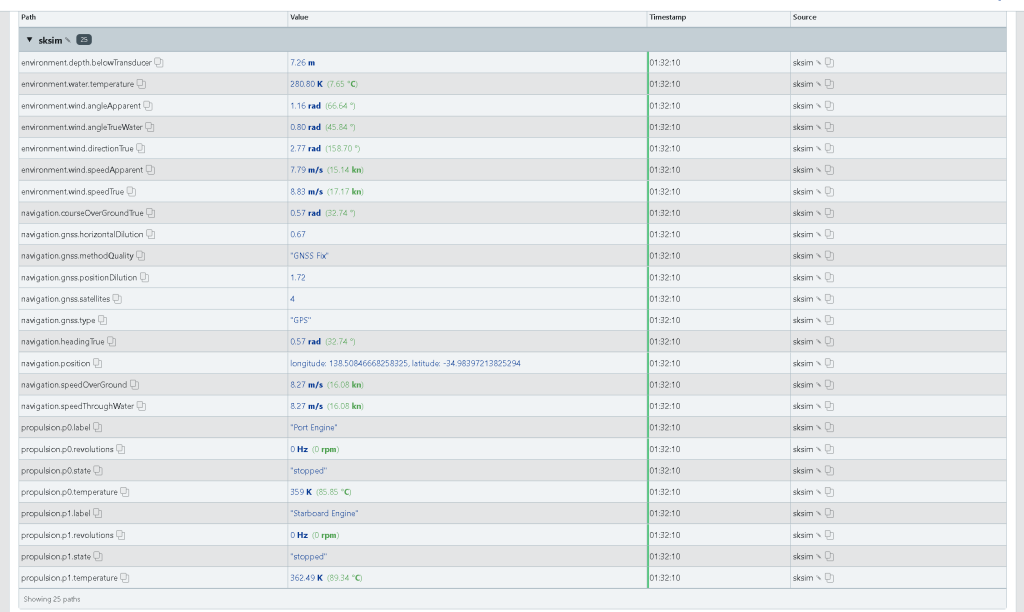

amauryv Offline Gebruiker Berichten: 12	Nu niet mogelijk om na te kijken maar kan me herinneren dat die na een tijd een melding gaf dat sommige gegevens niet binnen kwamen. de sommige knopen lijnen lichtte wel op naarmate data veranderde. ik check morgen wat hij nog mist Groeten Amaury
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 12:32 #1691393

Aswin
Offline
Gebruiker
Berichten: 814

amauryv schreef :

Hi

Ik probeer de plugin te testen op signal k met de SK sim plugin. Welke data heeft ie juist allemaal nodig om de percentage van de polar te berekenen? krijg momenteel niks door zo te zien.

Heb in de config al de csv toegevoegd.

Groeten Amaury

De plugin gebruikt:
STW: navigation.speedThroughWater
TWS: environment.wind.speedTrue
TWA: environment.wind.angleTrueWater

En afhankelijk van je settings ook nog:
SOG: navigation.speedOverGround
HDG: navigation.headingTrue

Zorg wel met testen dat je een windsnelheid hoger dan 6 knopen gebruikt en een windhoek van meer dan 45 graden ander llop je het risico buiten de range van je polar diagram uit te komen en dan krijg je niet overal geldige waarden voor.

Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 17:50 #1691434

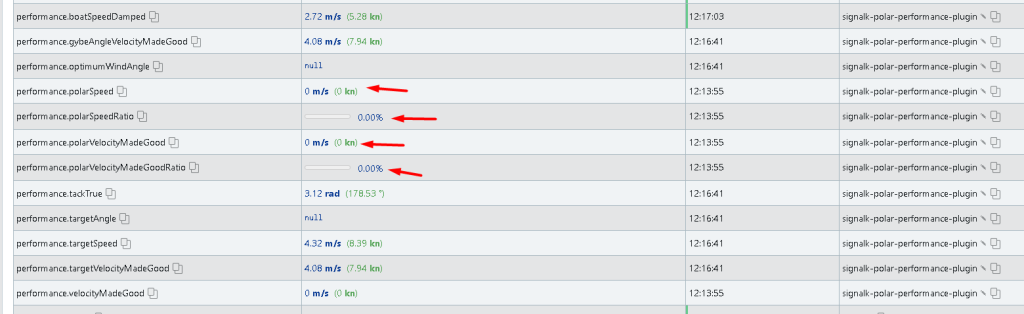

amauryv Offline Gebruiker Berichten: 12	Hoe komt het dat die polars vaak maar vanaf 42/45 beginnen? Je hebt toch genoeg momenten dat je bv tussen 35-40 graden zit?
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 18:36 #1691437

Baasklusje Offline Gebruiker Berichten: 29079	Ze beginnen vaak genoeg bij 36 a 37 TWA. Wel met wat meer wind, 15+ kts. Ruimer, TWA 45+ , met minder wind.
	"You means de Womens' Libromatium Movenint done created de uncontrollable urgement to play dingle-dangle-dingle wit de personal requipment of yo own gender?" Zappa, Thing Fish Laatst bewerkt: 02 juli 2026 18:36 door Baasklusje. Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 20:18 #1691468

Aswin Offline Gebruiker Berichten: 814	amauryv schreef : Hoe komt het dat die polars vaak maar vanaf 42/45 beginnen? Je hebt toch genoeg momenten dat je bv tussen 35-40 graden zit? Een polar begint bij de beat angle (waar de hoogste VMG behaald wordt). Prikken doen ze niet aan, geen idee waarom.
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 20:46 #1691473

Menno Offline Gebruiker Berichten: 4346	Aswin schreef : Een polar begint bij de beat angle (waar de hoogste VMG behaald wordt). Prikken doen ze niet aan, geen idee waarom. Alles tussen 0° en de beat angle kan je berekenen met de gegevens die wel op de meetbrief staan en wat goniometrie. Met prikken ga je die berekenende snelheid niet halen, dus dat moet je niet doen.
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 20:50 #1691474

amauryv
Offline
Gebruiker
Berichten: 12

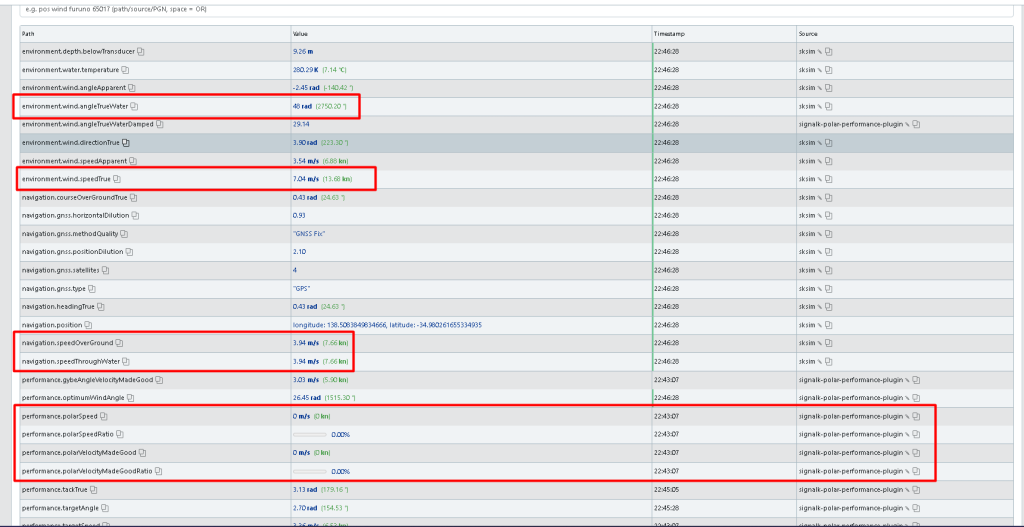

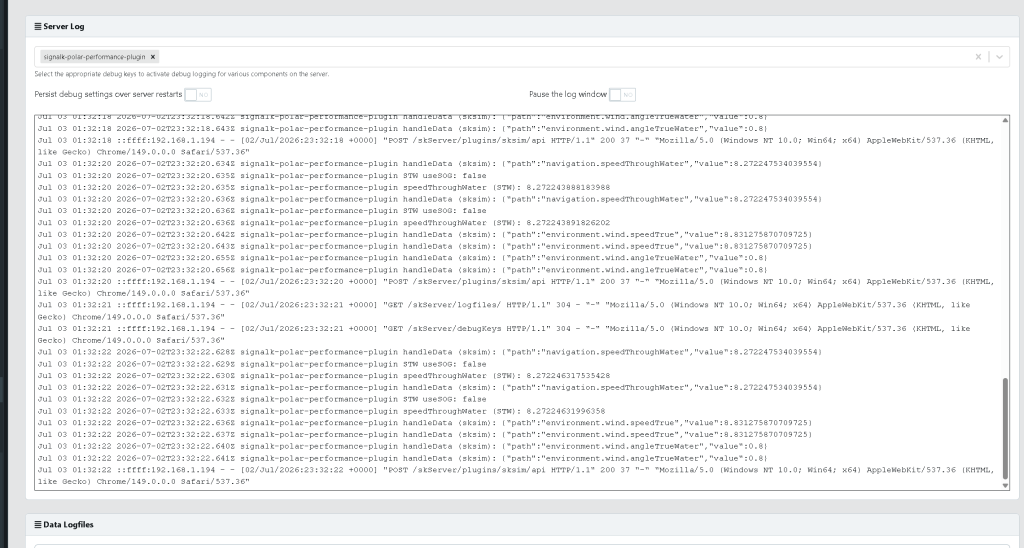

Zoals je op de screenshot kan zien zijn deze gegevens nu aanwezig, nog steeds blijft de polar plugin geen data doorgeven.

dit is de csv die ik heb opgemaakt van een polar op orc.org.

twa/tws;4;6;8;10;12;14;16;20;24
0;0;0;0;0;0;0;0;0;0
47.1;2.23;0;0;0;0;0;0;0;0
44.1;0;3.23;0;0;0;0;0;0;0
42.1;0;0;3.97;0;0;0;0;0;0
41.1;0;0;0;4.51;0;0;0;0;0
40.4;0;0;0;0;4.81;0;0;0;0
40.3;0;0;0;0;0;4.92;0;0;0
40.4;0;0;0;0;0;0;4.98;0;0
40.9;0;0;0;0;0;0;0;4.98;0
42.6;0;0;0;0;0;0;0;0;4.81
52;3.54;4.97;5.97;6.67;7.04;7.2;7.28;7.34;7.26
60;3.82;5.26;6.25;6.92;7.3;7.47;7.55;7.63;7.58
75;4.04;5.48;6.47;7.12;7.52;7.76;7.9;8.06;8.1
90;4.03;5.63;6.75;7.41;7.69;7.86;8.1;8.45;8.62
110;4.1;5.73;6.9;7.59;8.02;8.38;8.62;8.98;9.24
120;3.96;5.57;6.74;7.48;7.95;8.38;8.78;9.42;9.88
135;3.45;4.98;6.17;7.06;7.64;8.08;8.51;9.45;10.76
150;2.85;4.19;5.33;6.29;7.04;7.56;7.94;8.7;9.57
139;2.47;0;0;0;0;0;0;0;0
143;0;3.63;0;0;0;0;0;0;0
147.2;0;0;4.61;0;0;0;0;0;0
149.2;0;0;0;5.45;0;0;0;0;0
151;0;0;0;0;6.11;0;0;0;0
155.2;0;0;0;0;0;6.61;0;0;0
160.6;0;0;0;0;0;0;7.04;0;0
163.7;0;0;0;0;0;0;0;7.73;0
161.1;0;0;0;0;0;0;0;0;8.4

Bijlagen:


Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 21:08 #1691476

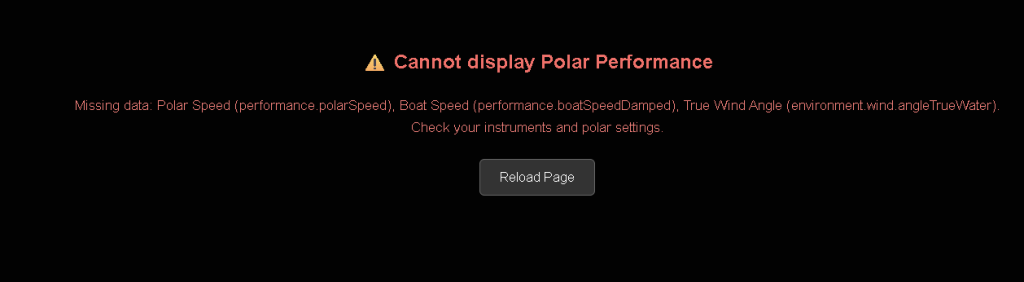

amauryv Offline Gebruiker Berichten: 12	dit geeft de webapp polar weer Bijlagen: ...t_4.png (9KB)
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 22:04 #1691481

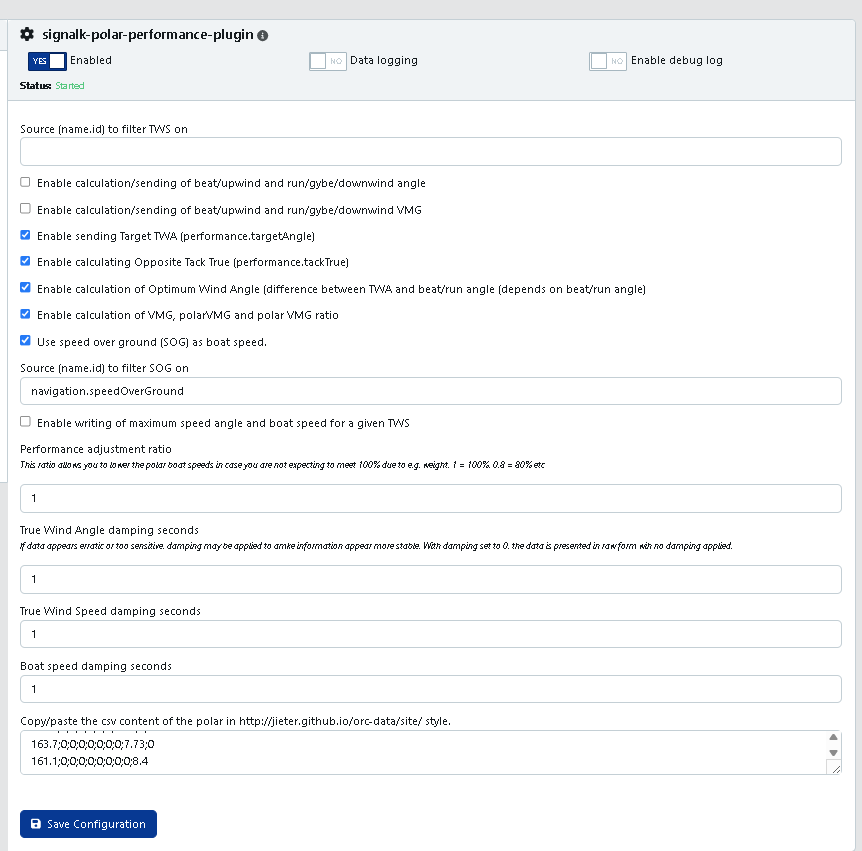

Aswin Offline Gebruiker Berichten: 814	Zet de optie use SOG as boatspeed eens uit.
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 02 juli 2026 23:33 #1691484

amauryv Offline Gebruiker Berichten: 12	Aswin schreef : Zet de optie use SOG as boatspeed eens uit. hier wat meer info, heb ook de logs eens aan gezet Bijlagen: _1.png (85KB) _2.png (82KB) _3.png (137KB)
	Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 03 juli 2026 05:02 #1691487

Nachtvlinder
Offline
Gebruiker
Berichten: 28179

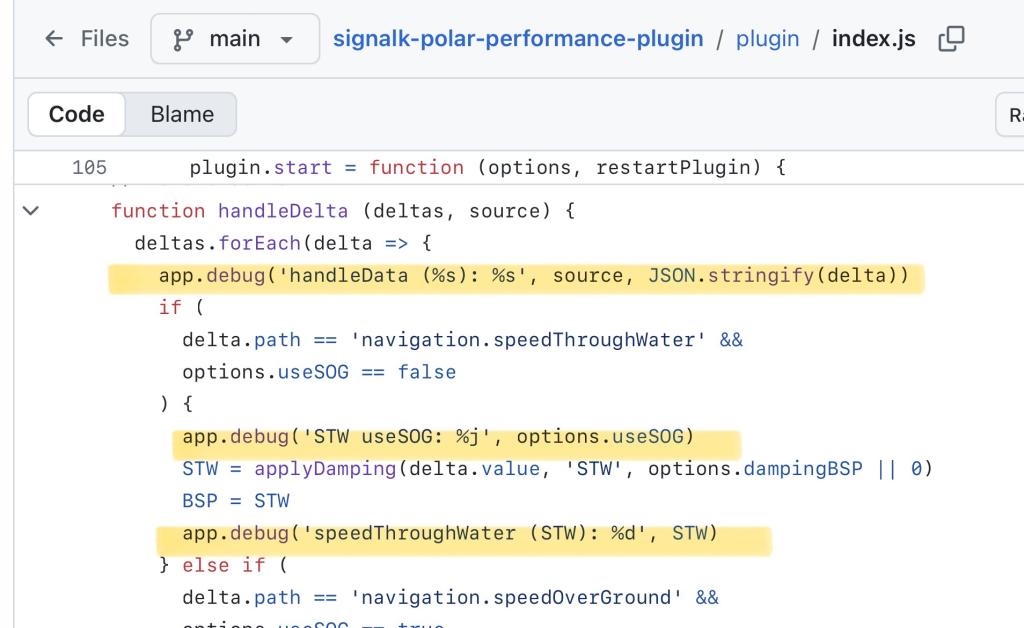

Ik zie in de debugoutput die je stuurt geen vreemde dingen of foutmeldingen.

Het valt mij wel op dat niet alle debuginfo aangezet is en dus ook niet gelogd wordt.

De STW input handling bijvoorbeeld wél (en je ziet in jouw output dat de lokale variabele “STW” correct gevuld wordt):

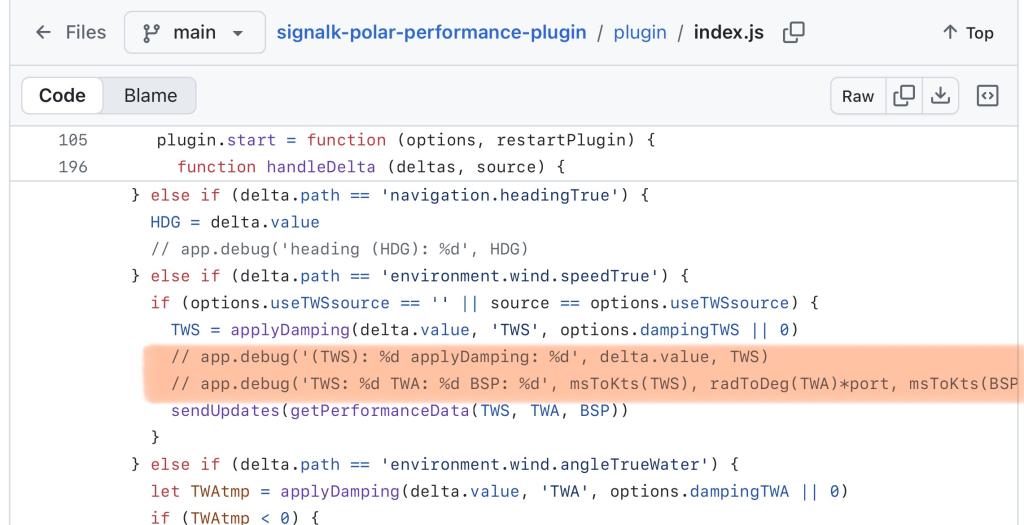

Maar even verderop wordt dezelfde debuginfo over TWS niet getoond:

Je ziet nu dus niet of dát stuk ook goed gaat.

Ik zou eerst alle outcommented (//) debugregels aanzetten (index.js), dan kun je zien of in elk geval alle benodigde data correct ingelezen wordt.

Ik ben absoluut geen programmeur, maar zo zou ik het aanpakken. Hopelijk heeft hanst even tijd!

Laatst bewerkt: 03 juli 2026 05:27 door Nachtvlinder.

Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 03 juli 2026 09:51 #1691530

amauryv
Offline
Gebruiker
Berichten: 12

Nachtvlinder schreef :

Maar even verderop wordt dezelfde debuginfo over TWS niet getoond:

Heb wat dingen uit command gehaald en nu krijg ik dit in de debug log te zien.

Jul 03 11:50:53 2026-07-03T09:50:53.651Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 42.1
Jul 03 11:50:53 2026-07-03T09:50:53.651Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 42.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 42.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 42.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.652Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 41.1
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.653Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.654Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 40.3
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.655Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 40.4
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 40.9
Jul 03 11:50:53 2026-07-03T09:50:53.656Z signalk-polar-performance-plugin Padding for angle 0 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 5 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 10 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 15 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 20 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 25 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 30 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 35 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding for angle 40 (< lowTWA) 42.6
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding polar for 0 from highTWA to last given angle (2.6179938779914944, 0 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.657Z signalk-polar-performance-plugin Padding polar for 4 from highTWA to last given angle (2.6179938779914944, 2.85 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 6 from highTWA to last given angle (2.6179938779914944, 4.19 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 8 from highTWA to last given angle (2.6179938779914944, 5.33 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 10 from highTWA to last given angle (2.6179938779914944, 6.29 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 12 from highTWA to last given angle (2.6354471705114375, 6.11 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 14 from highTWA to last given angle (2.7087509990951992, 6.61 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 16 from highTWA to last given angle (2.802998778702893, 7.04 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.658Z signalk-polar-performance-plugin Padding polar for 20 from highTWA to last given angle (2.8571039855147173, 7.73 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.659Z signalk-polar-performance-plugin Padding polar for 24 from highTWA to last given angle (2.811725424962865, 8.4 kts)
Jul 03 11:50:53 2026-07-03T09:50:53.659Z signalk-polar-performance-plugin polar: [{"tws":0.0001,"Beat angle":0.8220500776893293,"Beat VMG":0.781,"Run angle":2.426007660272118,"Run VMG":0.959,"Max speed":0,"Max speed angle":1.9198621771937625,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0},{"twa":0.17453292519943295,"tbs":0},{"twa":0.2617993877991494,"tbs":0},{"twa":0.3490658503988659,"tbs":0},{"twa":0.4363323129985824,"tbs":0},{"twa":0.5235987755982988,"tbs":0},{"twa":0.6108652381980153,"tbs":0},{"twa":0.6981317007977318,"tbs":0},{"twa":0.7853981633974483,"tbs":0},{"twa":0.8220500776893293,"tbs":0,"vmg":0},{"twa":0.9075712110370514,"tbs":0,"vmg":0},{"twa":1.0471975511965976,"tbs":0,"vmg":0},{"twa":1.3089969389957472,"tbs":0,"vmg":0},{"twa":1.5707963267948966,"tbs":0,"vmg":0},{"twa":1.9198621771937625,"tbs":0,"vmg":0},{"twa":2.0943951023931953,"tbs":0,"vmg":0},{"twa":2.356194490192345,"tbs":0,"vmg":0},{"twa":2.426007660272118,"tbs":0,"vmg":0},{"twa":2.6179938779914944,"tbs":0,"vmg":0},{"twa":2.617993877991495,"tbs":0},{"twa":2.7052603405912112,"tbs":0},{"twa":2.7925268031909276,"tbs":0},{"twa":2.879793265790644,"tbs":0},{"twa":2.9670597283903604,"tbs":0},{"twa":3.0543261909900767,"tbs":0},{"twa":3.141592653589793,"tbs":0}]},{"tws":2.057782533541855,"Beat angle":0.8220500776893293,"Beat VMG":0.781,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.001243713097358288},{"twa":0.17453292519943295,"tbs":0.01805742056811989},{"twa":0.2617993877991494,"tbs":0.06920771980880512},{"twa":0.3490658503988659,"tbs":0.16668722784711484},{"twa":0.4363323129985824,"tbs":0.3129633361633248},{"twa":0.5235987755982988,"tbs":0.49985073744746616},{"twa":0.6108652381980153,"tbs":0.7092438087041855},{"twa":0.6981317007977318,"tbs":0.9156512574782601},{"twa":0.7853981633974483,"tbs":1.0901849988703816},{"twa":0.8220500776893293,"tbs":1.1472137624495844,"vmg":0.7809323492563106},{"twa":0.9075712110370514,"tbs":1.821137542184542,"vmg":1.1212042259922783},{"twa":1.0471975511965976,"tbs":1.9651823195324718,"vmg":0.9825911597662361},{"twa":1.3089969389957472,"tbs":2.0783603588772737,"vmg":0.5379192434635482},{"twa":1.5707963267948966,"tbs":2.0732159025434194,"vmg":1.2694786094955948e-16},{"twa":1.9198621771937625,"tbs":2.1092270968804017,"vmg":0.7213981539814192},{"twa":2.0943951023931953,"tbs":2.0372047082064366,"vmg":1.0186023541032179},{"twa":2.356194490192345,"tbs":1.7748374351798504,"vmg":1.2549995859194116},{"twa":2.426007660272118,"tbs":1.2706807144620957,"vmg":0.9589949086088603},{"twa":2.6179938779914944,"tbs":1.466170055148572,"vmg":1.2697405140266949},{"twa":2.617993877991495,"tbs":1.4661700551485712},{"twa":2.7052603405912112,"tbs":1.3731041099206187},{"twa":2.7925268031909276,"tbs":1.2886260250329242},{"twa":2.879793265790644,"tbs":1.211710789378985},{"twa":2.9670597283903604,"tbs":1.141481876845774},{"twa":3.0543261909900767,"tbs":1.077186162966298},{"twa":3.141592653589793,"tbs":1.0181736494087306}],"Max speed":2.1092270968804017,"Max speed angle":1.9198621771937625,"Run angle":2.426007660272118,"Run VMG":0.959},{"tws":3.086673800312783,"Beat angle":0.7696902001294994,"Beat VMG":1.193,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.007878495253112319},{"twa":0.17453292519943295,"tbs":0.05196512676622714},{"twa":0.2617993877991494,"tbs":0.1569433967046959},{"twa":0.3490658503988659,"tbs":0.33479274314982016},{"twa":0.4363323129985824,"tbs":0.5817419210398167},{"twa":0.5235987755982988,"tbs":0.8779617902078108},{"twa":0.6108652381980153,"tbs":1.190126482881291},{"twa":0.6981317007977318,"tbs":1.4765135941883891},{"twa":0.7696902001294994,"tbs":1.661659395835048,"vmg":1.1932813100744402},{"twa":0.9075712110370514,"tbs":2.5567947979257553,"vmg":1.5741200573959389},{"twa":1.0471975511965976,"tbs":2.7059840316075396,"vmg":1.35299201580377},{"twa":1.3089969389957472,"tbs":2.819162070952342,"vmg":0.7296528351931301},{"twa":1.5707963267948966,"tbs":2.896328915960161,"vmg":1.7734899681042673e-16},{"twa":1.9198621771937625,"tbs":2.947773479298708,"vmg":1.0081979078813492},{"twa":2.0943951023931953,"tbs":2.8654621779570335,"vmg":1.432731088978516},{"twa":2.356194490192345,"tbs":2.56193925425961,"vmg":1.8115646196749766},{"twa":2.4958208303518914,"tbs":1.8674376491892337,"vmg":1.4914020194417614},{"twa":2.6179938779914944,"tbs":2.1555272038850934,"vmg":1.8667413171129301},{"twa":2.617993877991495,"tbs":2.1555272038850926},{"twa":2.7052603405912112,"tbs":2.0187039370411903},{"twa":2.7925268031909276,"tbs":1.8945063315396324},{"twa":2.879793265790644,"tbs":1.7814274412273499},{"twa":2.9670597283903604,"tbs":1.6781786189416816},{"twa":3.0543261909900767,"tbs":1.5836526395890487},{"twa":3.141592653589793,"tbs":1.4968938915868706}],"Max speed":2.947773479298708,"Max speed angle":1.9198621771937625,"Run angle":2.4958208303518914,"Run VMG":1.491},{"tws":4.11556506708371,"Beat angle":0.7347836150896128,"Beat VMG":1.515,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.01798250428603173},{"twa":0.17453292519943295,"tbs":0.09189412285425506},{"twa":0.2617993877991494,"tbs":0.24899351858255858},{"twa":0.3490658503988659,"tbs":0.49866387174821086},{"twa":0.4363323129985824,"tbs":0.8296282770672837},{"twa":0.5235987755982988,"tbs":1.2108022483136565},{"twa":0.6108652381980153,"tbs":1.595741736755605},{"twa":0.6981317007977318,"tbs":1.9300658846888719},{"twa":0.7347836150896128,"tbs":2.0423491645402914,"vmg":1.51537373892563},{"twa":0.9075712110370514,"tbs":3.0712404313112187,"vmg":1.890844415020876},{"twa":1.0471975511965976,"tbs":3.215285208659149,"vmg":1.6076426043295748},{"twa":1.3089969389957472,"tbs":3.328463248003951,"vmg":0.8614696795072172},{"twa":1.5707963267948966,"tbs":3.472508025351881,"vmg":2.1262979191303385e-16},{"twa":1.9198621771937625,"tbs":3.5496748703597008,"vmg":1.2140603079199495},{"twa":2.0943951023931953,"tbs":3.4673635690180262,"vmg":1.7336817845090124},{"twa":2.356194490192345,"tbs":3.1741295579883118,"vmg":2.244448534818194},{"twa":2.569124658935653,"tbs":2.3715943699069886,"vmg":1.9934830243822048},{"twa":2.6179938779914944,"tbs":2.7419952259445224,"vmg":2.3746375227236083},{"twa":2.617993877991495,"tbs":2.741995225944521},{"twa":2.7052603405912112,"tbs":2.567945581009438},{"twa":2.7925268031909276,"tbs":2.4099567415528025},{"twa":2.879793265790644,"tbs":2.266111756978944},{"twa":2.9670597283903604,"tbs":2.1347713696799913},{"twa":3.0543261909900767,"tbs":2.014527104775568},{"twa":3.141592653589793,"tbs":1.904163351350363}],"Max speed":3.5496748703597008,"Max speed angle":1.9198621771937625,"Run angle":2.569124658935653,"Run VMG":1.993},{"tws":5.144456333854638,"Beat angle":0.7173303225696694,"Beat VMG":1.748,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.02637677816937517},{"twa":0.17453292519943295,"tbs":0.12279096385091484},{"twa":0.2617993877991494,"tbs":0.3180934330232438},{"twa":0.3490658503988659,"tbs":0.6196001831068176},{"twa":0.4363323129985824,"tbs":1.0105393774550917},{"twa":0.5235987755982988,"tbs":1.4517640350426737},{"twa":0.6108652381980153,"tbs":1.8875612093814194},{"twa":0.6981317007977318,"tbs":2.2547258183874757},{"twa":0.7173303225696694,"tbs":2.3201498065684416,"vmg":1.7483799588857039},{"twa":0.9075712110370514,"tbs":3.4313523746810435,"vmg":2.112551465358332},{"twa":1.0471975511965976,"tbs":3.55996378302741,"vmg":1.7799818915137053},{"twa":1.3089969389957472,"tbs":3.6628529097045024,"vmg":0.948016092440709},{"twa":1.5707963267948966,"tbs":3.8120421433862868,"vmg":2.334202604556416e-16},{"twa":1.9198621771937625,"tbs":3.9046423573956703,"vmg":1.335466338711944},{"twa":2.0943951023931953,"tbs":3.8480533377232695,"vmg":1.9240266688616339},{"twa":2.356194490192345,"tbs":3.6319861717013744,"vmg":2.56820205118581},{"twa":2.6040312439755393,"tbs":2.803728701950778,"vmg":2.4082905168491853},{"twa":2.6179938779914944,"tbs":3.2358630339945673,"vmg":2.8023395906062842},{"twa":2.617993877991495,"tbs":3.235863033994566},{"twa":2.7052603405912112,"tbs":3.0304648601405932},{"twa":2.7925268031909276,"tbs":2.844020244721787},{"twa":2.879793265790644,"tbs":2.6742669702434436},{"twa":2.9670597283903604,"tbs":2.5192705281964622},{"twa":3.0543261909900767,"tbs":2.3773687596694786},{"twa":3.141592653589793,"tbs":2.247127106940672}],"Max speed":3.9046423573956703,"Max speed angle":1.9198621771937625,"Run angle":2.6040312439755393,"Run VMG":2.408},{"tws":6.173347600625566,"Beat angle":0.7051130178057091,"Beat VMG":1.884,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.033121718443711},{"twa":0.17453292519943295,"tbs":0.1457783440369384},{"twa":0.2617993877991494,"tbs":0.36700238227369236},{"twa":0.3490658503988659,"tbs":0.7019711732407894},{"twa":0.4363323129985824,"tbs":1.1297672501560438},{"twa":0.5235987755982988,"tbs":1.605778786002396},{"twa":0.6108652381980153,"tbs":2.068465375308509},{"twa":0.6981317007977318,"tbs":2.449506054094036},{"twa":0.7051130178057091,"tbs":2.4744834965840807,"vmg":1.8844139740162276},{"twa":0.9075712110370514,"tbs":3.6216972590336654,"vmg":2.2297394776795594},{"twa":1.0471975511965976,"tbs":3.755453123713886,"vmg":1.8777265618569434},{"twa":1.3089969389957472,"tbs":3.8686311630586876,"vmg":1.0012754234767036},{"twa":1.5707963267948966,"tbs":3.956086920734217,"vmg":2.422404592312934e-16},{"twa":1.9198621771937625,"tbs":4.12585397975142,"vmg":1.4111251694953613},{"twa":2.0943951023931953,"tbs":4.0898427854144375,"vmg":2.044921392707218},{"twa":2.356194490192345,"tbs":3.9303646390649436,"vmg":2.7791874888186388},{"twa":2.6179938779914944,"tbs":3.6216972590336654,"vmg":3.136481831139625},{"twa":2.6354471705114375,"tbs":3.143262819985184,"vmg":2.749159607077593},{"twa":2.7052603405912112,"tbs":2.9831232282406726},{"twa":2.7925268031909276,"tbs":2.7995912327532095},{"twa":2.879793265790644,"tbs":2.632489827676113},{"twa":2.9670597283903604,"tbs":2.4799147252069957},{"twa":3.0543261909900767,"tbs":2.3402297325218666},{"twa":3.141592653589793,"tbs":2.21202270242229}],"Max speed":4.12585397975142,"Max speed angle":1.9198621771937625,"Run angle":2.6354471705114375,"Run VMG":2.749},{"tws":7.202238867396494,"Beat angle":0.7033676885537148,"Beat VMG":1.93,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.034647122353794677},{"twa":0.17453292519943295,"tbs":0.15135342309598185},{"twa":0.2617993877991494,"tbs":0.3795504878729594},{"twa":0.3490658503988659,"tbs":0.7241416282509986},{"twa":0.4363323129985824,"tbs":1.1632834988774552},{"twa":0.5235987755982988,"tbs":1.6509265060734768},{"twa":0.6108652381980153,"tbs":2.123818961560413},{"twa":0.6981317007977318,"tbs":2.511955298503119},{"twa":0.7033676885537148,"tbs":2.531072516256482,"vmg":1.930368848311994},{"twa":0.9075712110370514,"tbs":3.7040085603753394,"vmg":2.2804153748995493},{"twa":1.0471975511965976,"tbs":3.8429088813894148,"vmg":1.9214544406947078},{"twa":1.3089969389957472,"tbs":3.992098115071199,"vmg":1.0332310220983008},{"twa":1.5707963267948966,"tbs":4.043542678409746,"vmg":2.4759557991651054e-16},{"twa":1.9198621771937625,"tbs":4.311054407770187,"vmg":1.4744674464303151},{"twa":2.0943951023931953,"tbs":4.311054407770187,"vmg":2.1555272038850926},{"twa":2.356194490192345,"tbs":4.156720717754547,"vmg":2.9392454070228533},{"twa":2.6179938779914944,"tbs":3.889208988394106,"vmg":3.3681537845760743},{"twa":2.7087509990951992,"tbs":3.400485636677916,"vmg":3.0868842770508507},{"twa":2.7925268031909276,"tbs":3.1995169355502493},{"twa":2.879793265790644,"tbs":3.0085448503245695},{"twa":2.9670597283903604,"tbs":2.834174171283267},{"twa":3.0543261909900767,"tbs":2.674534973064046},{"twa":3.141592653589793,"tbs":2.5280133811755072}],"Max speed":4.311054407770187,"Max speed angle":1.9198621771937625,"Run angle":2.7087509990951992,"Run VMG":3.087},{"tws":8.23113013416742,"Beat angle":0.7051130178057091,"Beat VMG":1.951,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.03429234050928915},{"twa":0.17453292519943295,"tbs":0.1509305932024851},{"twa":0.2617993877991494,"tbs":0.3799733604413697},{"twa":0.3490658503988659,"tbs":0.7267809652264307},{"twa":0.4363323129985824,"tbs":1.169696654007713},{"twa":0.5235987755982988,"tbs":1.6625318823891753},{"twa":0.6108652381980153,"tbs":2.1415712201738826},{"twa":0.6981317007977318,"tbs":2.536079033136861},{"twa":0.7051130178057091,"tbs":2.56193925425961,"vmg":1.951014883700793},{"twa":0.9075712110370514,"tbs":3.745164211046177,"vmg":2.305753323509544},{"twa":1.0471975511965976,"tbs":3.884064532060252,"vmg":1.9420322660301264},{"twa":1.3089969389957472,"tbs":4.064120503745165,"vmg":1.051871787960899},{"twa":1.5707963267948966,"tbs":4.167009630422257,"vmg":2.551557502956406e-16},{"twa":1.9198621771937625,"tbs":4.434521359782698,"vmg":1.5166956310536177},{"twa":2.0943951023931953,"tbs":4.516832661124372,"vmg":2.258416330562185},{"twa":2.356194490192345,"tbs":4.377932340110297,"vmg":3.0956656452678812},{"twa":2.6179938779914944,"tbs":4.084698329080583,"vmg":3.5374525197796336},{"twa":2.802998778702893,"tbs":3.6216972590336654,"vmg":3.4160669149472747},{"twa":2.879793265790644,"tbs":3.431115501047181},{"twa":2.9670597283903604,"tbs":3.2322532704501565},{"twa":3.0543261909900767,"tbs":3.0501916576656174},{"twa":3.141592653589793,"tbs":2.8830901085188128}],"Max speed":4.516832661124372,"Max speed angle":2.0943951023931953,"Run angle":2.802998778702893,"Run VMG":3.416},{"tws":10.288912667709276,"Beat angle":0.7138396640656808,"Beat VMG":1.936,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.03055319311145562},{"twa":0.17453292519943295,"tbs":0.13987576054737738},{"twa":0.2617993877991494,"tbs":0.35932508148640546},{"twa":0.3490658503988659,"tbs":0.6962141533763809},{"twa":0.4363323129985824,"tbs":1.131133121527577},{"twa":0.5235987755982988,"tbs":1.6200086453202354},{"twa":0.6108652381980153,"tbs":2.10068669412342},{"twa":0.6981317007977318,"tbs":2.5030919836774057},{"twa":0.7138396640656808,"tbs":2.56193925425961,"vmg":1.9364506731288815},{"twa":0.9075712110370514,"tbs":3.7760309490493045,"vmg":2.3247567849670405},{"twa":1.0471975511965976,"tbs":3.925220182731089,"vmg":1.9626100913655449},{"twa":1.3089969389957472,"tbs":4.146431805086839,"vmg":1.073175520375297},{"twa":1.5707963267948966,"tbs":4.347065602107169,"vmg":2.6618099876520533e-16},{"twa":1.9198621771937625,"tbs":4.619721787801465,"vmg":1.5800379079885716},{"twa":2.0943951023931953,"tbs":4.846077866491069,"vmg":2.4230389332455338},{"twa":2.356194490192345,"tbs":4.861511235492633,"vmg":3.437607561431431},{"twa":2.6179938779914944,"tbs":4.475677010453535,"vmg":3.8760499901867522},{"twa":2.8571039855147173,"tbs":3.9766647460696354,"vmg":3.8168238676887984},{"twa":2.879793265790644,"tbs":3.914249002721865},{"twa":2.9670597283903604,"tbs":3.687385089934353},{"twa":3.0543261909900767,"tbs":3.47968748078703},{"twa":3.141592653589793,"tbs":3.2890564536760123}],"Max speed":4.861511235492633,"Max speed angle":2.356194490192345,"Run angle":2.8571039855147173,"Run VMG":3.817},{"tws":12.346695201251132,"Beat angle":0.7435102613495844,"Beat VMG":1.821,"twa":[{"twa":0,"tbs":0},{"twa":0.08726646259971647,"tbs":0.018951446194828487},{"twa":0.17453292519943295,"tbs":0.10219735887272959},{"twa":0.2617993877991494,"tbs":0.28379361234431744},{"twa":0.3490658503988659,"tbs":0.5768095030965766},{"twa":0.4363323129985824,"tbs":0.9696457951391755},{"twa":0.5235987755982988,"tbs":1.426682619557744},{"twa":0.6108652381980153,"tbs":1.8932696805345852},{"twa":0.6981317007977318,"tbs":2.304373177851049},{"twa":0.7435102613495844,"tbs":2.4744834965840807,"vmg":1.821460093961397},{"twa":0.9075712110370514,"tbs":3.7348752983784674,"vmg":2.2994188363570456},{"twa":1.0471975511965976,"tbs":3.8994979010618156,"vmg":1.9497489505309082},{"twa":1.3089969389957472,"tbs":4.167009630422257,"vmg":1.0785014534788964},{"twa":1.5707963267948966,"tbs":4.434521359782698,"vmg":2.715361194504225e-16},{"twa":1.9198621771937625,"tbs":4.753477652481686,"vmg":1.6257851079971495},{"twa":2.0943951023931953,"tbs":5.082722857848383,"vmg":2.54136142892419},{"twa":2.356194490192345,"tbs":5.53543501522759,"vmg":3.914143636084889},{"twa":2.6179938779914944,"tbs":4.923244711498889,"vmg":4.263654989205428},{"twa":2.811725424962865,"tbs":4.321343320437896,"vmg":4.088359645933504},{"twa":2.879793265790644,"tbs":4.119475874285473},{"twa":2.9670597283903604,"tbs":3.8807173244782702},{"twa":3.0543261909900767,"tbs":3.6621299813035764},{"twa":3.141592653589793,"tbs":3.461504033253766}],"Max speed":5.53543501522759,"Max speed angle":2.356194490192345,"Run angle":2.811725424962865,"Run VMG":4.088}]
Jul 03 11:50:54 2026-07-03T09:50:54.174Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:50:54 2026-07-03T09:50:54.176Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:50:54 2026-07-03T09:50:54.180Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:50:54 ::ffff:192.168.1.194 - - [03/Jul/2026:09:50:54 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:50:54 ::ffff:192.168.1.194 - - [03/Jul/2026:09:50:54 +0000] "GET /skServer/debugKeys HTTP/1.1" 304 - "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:50:54 ::ffff:192.168.1.194 - - [03/Jul/2026:09:50:54 +0000] "GET /skServer/logfiles/ HTTP/1.1" 304 - "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:50:56 2026-07-03T09:50:56.169Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:50:56 2026-07-03T09:50:56.171Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:50:56 2026-07-03T09:50:56.171Z signalk-polar-performance-plugin performance.polarSpeedRatio = NaN
Jul 03 11:50:56 2026-07-03T09:50:56.177Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:50:56 ::ffff:192.168.1.194 - - [03/Jul/2026:09:50:56 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:50:58 2026-07-03T09:50:58.178Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:50:58 2026-07-03T09:50:58.181Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:50:58 2026-07-03T09:50:58.182Z signalk-polar-performance-plugin performance.polarSpeedRatio = NaN
Jul 03 11:50:58 2026-07-03T09:50:58.187Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:50:58 ::ffff:192.168.1.194 - - [03/Jul/2026:09:50:58 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:51:00 2026-07-03T09:51:00.178Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:51:00 2026-07-03T09:51:00.181Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:51:00 2026-07-03T09:51:00.182Z signalk-polar-performance-plugin performance.polarSpeedRatio = NaN
Jul 03 11:51:00 2026-07-03T09:51:00.187Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:51:00 ::ffff:192.168.1.194 - - [03/Jul/2026:09:51:00 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:51:02 2026-07-03T09:51:02.181Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:51:02 2026-07-03T09:51:02.184Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:51:02 2026-07-03T09:51:02.185Z signalk-polar-performance-plugin performance.polarSpeedRatio = NaN
Jul 03 11:51:02 2026-07-03T09:51:02.190Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:51:02 ::ffff:192.168.1.194 - - [03/Jul/2026:09:51:02 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"
Jul 03 11:51:04 2026-07-03T09:51:04.174Z signalk-polar-performance-plugin handleData (sksim): {"path":"navigation.speedThroughWater","value":8.272247534039554}
Jul 03 11:51:04 2026-07-03T09:51:04.177Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.speedTrue","value":8.831275870709725}
Jul 03 11:51:04 2026-07-03T09:51:04.178Z signalk-polar-performance-plugin performance.polarSpeedRatio = NaN
Jul 03 11:51:04 2026-07-03T09:51:04.183Z signalk-polar-performance-plugin handleData (sksim): {"path":"environment.wind.angleTrueWater","value":12}
Jul 03 11:51:04 ::ffff:192.168.1.194 - - [03/Jul/2026:09:51:04 +0000] "POST /skServer/plugins/sksim/api HTTP/1.1" 200 37 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/149.0.0.0 Safari/537.36"

Alleen ingelogde leden kunnen reageren.

Polar performance, speed plugin voor SignalK maken 03 juli 2026 10:02 #1691534

Nachtvlinder
Offline
Gebruiker
Berichten: 28179

Stel de gesimuleerde waarden voor STW, TWA en TWS eens in op normale waarden, die zonder extrapoleren binnen je polardata liggen?

Snelheden in SignalK zijn in m/s, hoeken in radialen: dus bv 5 kn STW, 90 gr TWA en 15 kn TWS eerst even omrekenen naar de juiste eenheden.

PS: kan ook iets heel anders zijn dat hanst meteen ziet; kan mij ook voorstellen dat je geen zin in debuggen hebt

Ik heb zelf een heel oude versie aan de praat en alleen een boel issues gehad met de B&G performance plugin die (in mijn geval niet lekker) met mijn Triton schermpjes samenwerkte. Nu blijf ik er heel bewust vanaf en update nooit (hoewel ik wel wat leuke nieuwe features zie)

Laatst bewerkt: 03 juli 2026 10:28 door Nachtvlinder.

Alleen ingelogde leden kunnen reageren.
